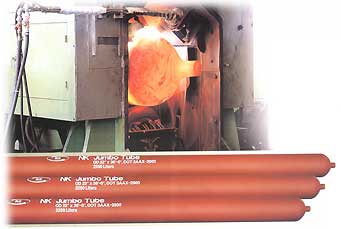

NK系列壓縮天然氣鋼瓶

優質、服務、信用！經營單位：深圳亞威華公司銷售部電話：0755-25887166，25887236　傳真：25887232

　NK系列壓縮天然氣鋼瓶型號及參數(Ⅰ)

NK Model No.	Water Volume cu.ft/L	Pressure Psi/bar		Outer Diameter inch/mm	MIn.Wall thickness inch/mm	Length(approx.) ft-inch/mm	Tare Weight(approx.) lbs/kg	Specification
NK Model No.	Water Volume cu.ft/L	Service	Test	Outer Diameter inch/mm	MIn.Wall thickness inch/mm	Length(approx.) ft-inch/mm	Tare Weight(approx.) lbs/kg	Specification
NYL-106	23.48/665	2490/175	4150/292	14/355.6	0.358/9.1	25-9/7850	1565/1710	US DOT-3AAX & TC-3AAMX
NYL-113	32.84/930	2490/175	4150/292	14/355.6	0.358/9.1	35-9/10890	2150/975	US DOT-3AAX & TC-3AAMX
NYL-131	16.07/455	2845/197	4750/328	14/355.6	0.409/10.4	18-6/5640	1400/635	US DOT-3AAX & TC-3AAMX
NYL-100	23.13/655					25-11/7900	1810/820	US DOT-3AAX & TC-3AAMX
NYL-112	32.84/930					36-4/11085	2525/1145	US DOT-3AAX & TC-3AAMX
NYL-132	34.43/975					38-0/11590	2635/1195	US DOT-3AAX & TC-3AAMX
NYL-201	40.43/1145	2400/166	4000/276	22/558.8	0.54/137	18-6/5640	2784/1263	US DOT-3AAX & TC-3AAMX
NYL-203	55.61/1575					25-0/7625	3710/1683	US DOT-3AAX & TC-3AAMX
NYL-207	77.51/2195					34-4/10470	5037/2285	US DOT-3AAX & TC-3AAMX
NYL-208	81.57/2310					36-0/10980	5276/2393	US DOT-3AAX & TC-3AAMX
NYL-210	87.39/2475					38-6/11740	5634/2554	US DOT-3AAX & TC-3AAMX
NYL-190	39.20/1110	2900/200	4835/333		0.65/16.5	18-8/5640	3330/1510	US DOT-3AAX & TC-3AAMX
NYL-192	34.20/1535					25-0/7625	4436/2012	US DOT-3AAX & TC-3AAMX
NYL-196	75.56/2140					34-4/10470	6023/2732	US DOT-3AAX & TC-3AAMX
NYL-115	79.45/2250					36-0/10980	6305/2860	US DOT-3AAX & TC-3AAMX
NYL-114	83.86/2375					38-0/11590	6645/3015	US DOT-3AAX & TC-3AAMX
NYL-197	85.10/2410					38-6/11740	6728/3052	US DOT-3AAX & TC-3AAMX
NYL-233	75.92/2150	3625/250	6040/417		0.811/20.6	36-0/10980	7720/3500	US DOT-3AAX & TC-3AAMX
NYL-234	79.98/2265	3625/250	6040/417		0.811/20.6	38-0/11590	8270/3750	US DOT-3AAX & TC-3AAMX
NYL-228	45.90/1300	3625/250	6040/417	24/609.6	0.886/22.5	19-4/5905	5105/2315	US DOT-3AAX & TC-3AAMX
NYL-229	90.04/2550					36-0/10980	9230/4185	US DOT-3AAX & TC-3AAMX
NYL-230	94.98/2690					38-0/11590	9803/4446	US DOT-3AAX & TC-3AAMX

　NK系列壓縮天然氣鋼瓶型號及參數(Ⅱ)

NK Model No.	Water Volume cu.ft/L	Pressure psi/bar		Outer Diameter inch/mm	Min.Wall thickness inch/mm	Length(approx.) ft-inch/mm	Tare Weight(approx.) lbs/kg	Specification
NK Model No.	Water Volume cu.ft/L	Service	Test	Outer Diameter inch/mm	Min.Wall thickness inch/mm	Length(approx.) ft-inch/mm	Tare Weight(approx.) lbs/kg	Specification
NJB-2002	41.74/1182	2400/166	4000/276	22/558.8	0.414/0.5	18-6/5640	2130/966	US DOT-3T
NJB-2004	68.36/1936					29-6/8995	3327/1509	US DOT-3T
NJB-2006	80.1/2268					34-4/10470	3854/1748	US DOT-3T
NJB-2007	84.11/2382					36-0/10980	4035/1830	US DOT-3T
NJB-2008	88.95/2519					38-0/11590	4252/1929	US DOT-3T
NJB-2013	40.89/1158	2850/197	4750/328		0.492/12.5	18-6/5640	2545/1154	US DOT-3T
NJB-2015	67.12/1898					29-6/8995	3973/1802	US DOT-3T
NJB-2017	78.5/2223					34-4/10470	4602/2087	US DOT-3T
NJB-2018	82.48/2336					36-0/10980	4820/2186	US DOT-3T
NJB-2019	87.22/2470					38-0/11590	5080/2304	US DOT-3T
NJB-2024	40.82/1156	2900/200	4830/333		0.5/12.7	18-6/5640	2580/1170	US DOT-3T
NJB-2026	66.91/1895					29-6/8995	4029/1827	US DOT-3T
NJB-2028	78.35/2219					34-4/10470	4666/2116	US DOT-3T
NJB-2029	82.34/2332					36-0/10980	4885/2216	US DOT-3T
NJB-2030	87.07/2466					38-0/11590	5151/2336	US DOT-3T
NJB-001	3.7/105	5500/379	8250/569	14/355.6	0.913/23.2	6-0/1830	660/300	ASME Sec.Ⅷ,Div.1
NJB-009	8.8/250	3625/250	5440/375	14/355.6	0.618/15.7	11-6/3480	1025/465	ASME Sec.Ⅷ,Div.1
NJB-027	49.4/1400	4000/276	6000/414	22/558.8	1.063/27	25-6/7785	7095/3218	ASME Sec.Ⅷ,Div.1
NJB-002	35.3/1000	4000/276	6000/414	24/609.6	1.157/29.4	16-0/4890	5390/2445	ASME Sec.Ⅷ,Div.1
NJB-045	36/1020	2800/193	4200/290		0.823/20.9	15-4/4675	3750/1700	ASME Sec.Ⅷ,Div.1
NJB-013	42.4/1200	3625/250	5440/375		1.055/26.8	18-6/5645	5696/2580	ASME Sec.Ⅷ,Div.1
NJB-005	45.2/1280	4000/276	6000/414		1.157/29.4	20-0/6100	6660/3020	ASME Sec.Ⅷ,Div.1
NJB-008	60.8/1723	2450/169	3675/253		0.724/18.4	24-0/7320	5087/2307	ASME Sec.Ⅷ,Div.1
