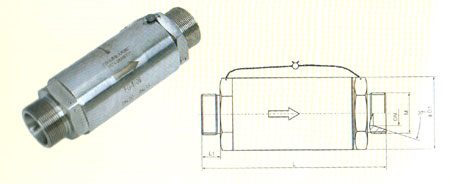

| 適用介質 |
腐蝕性氣體 |
| 工作環境溫度 |
-40～+50℃ |
| 閥體材料 |
1Cr18Ni9Ti |
|
|
| |
| 代號 |
濾網精度 |
L |
L1 |
M |
D1 |
PN(MPa) |
DN |
| FG-1F/05 |
5um |
181 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
| FG-2F/05 |
10um |
181 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
| FG-3F/05 |
14um |
181 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
| FG-4F/05 |
40um |
181 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
| FG-1F/06 |
5um |
193 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
| FG-2F/06 |
10um |
193 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
| FG-3F/06 |
14um |
193 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
| FG-4F/06 |
40um |
193 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
| FG-1F/07 |
5um |
191 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
| FG-2F/07 |
10um |
191 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
| FG-3F/07 |
14um |
191 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
| FG-4F/07 |
40um |
191 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
| FG-1F/08 |
5um |
232 |
24 |
M52×2 |
93 |
≤23 |
32 |
| FG-2F/08 |
10um |
232 |
24 |
M52×2 |
93 |
≤23 |
32 |
| FG-3F/08 |
14um |
232 |
24 |
M52×2 |
93 |
≤23 |
32 |
| FG-4F/08 |
40um |
232 |
24 |
M52×2 |
93 |
≤23 |
32 |
| KJ26-05F/006 |
5um |
252 |
24 |
M56×2 |
93 |
≤23 |
40 |
| KJ26-10F/006 |
10um |
252 |
24 |
M56×2 |
93 |
≤23 |
40 |
| KJ26-14F/006 |
14um |
252 |
24 |
M56×2 |
93 |
≤23 |
40 |
| KJ26-40F/006 |
40um |
252 |
24 |
M56×2 |
93 |
≤23 |
40 |
|
| |
|
| |
 |
|

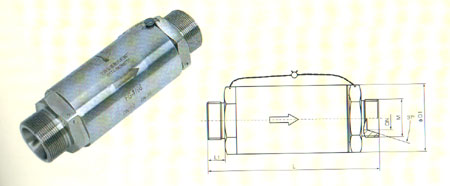

| 適用介質 |
非腐蝕性氣體 |
| 工作環境溫度 |
-40～+50℃ |
|
|
| |
| 代號 |
濾網精度 |
L |
L1 |
M |
D1 |
PN(MPa) |
DN |
閥體材料 |
| FG-1/05 |
5um |
168 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
1Cr18Ni9Ti |
| FG-2/05 |
10um |
168 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
1Cr18Ni9Ti |
| FG-3/05 |
14um |
168 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
1Cr18Ni9Ti |
| FG-4/05 |
40um |
168 |
19 |
M27×1.5 |
73 |
≤35 |
15 |
1Cr18Ni9Ti |
| FG-1/06 |
5um |
170 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
1Cr18Ni9Ti |
| FG-2/06 |
10um |
170 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
1Cr18Ni9Ti |
| FG-3/06 |
14um |
170 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
1Cr18Ni9Ti |
| FG-4/06 |
40um |
170 |
20 |
M36×1.5 |
73 |
≤35 |
20 |
1Cr18Ni9Ti |
| FG-1/07 |
5um |
174 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
1Cr18Ni9Ti |
| FG-2/07 |
10um |
174 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
1Cr18Ni9Ti |
| FG-3/07 |
14um |
174 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
1Cr18Ni9Ti |
| FG-4/07 |
40um |
174 |
22 |
M39×1.5 |
73 |
≤35 |
25 |
1Cr18Ni9Ti |
| FG-1/08 |
5um |
236 |
24 |
M52×2 |
93 |
≤23 |
32 |
1Cr18Ni9Ti |
| FG-2/08 |
10um |
236 |
24 |
M52×2 |
93 |
≤23 |
32 |
1Cr18Ni9Ti |
| FG-3/08 |
14um |
236 |
24 |
M52×2 |
93 |
≤23 |
32 |
1Cr18Ni9Ti |
| FG-4/08 |
40um |
236 |
24 |
M52×2 |
93 |
≤23 |
32 |
1Cr18Ni9Ti |
| KJ26-14/006 |
14um |
252 |
24 |
M56×2 |
93 |
≤23 |
40 |
2Cr13 |
| XJ.G01/14-6.4/50 |
14um |
245 |
24 |
M68×2 |
93 |
≤6.4 |
50 |
2Cr13 |
| XJ.G01H2-60/4 |
10um |
132 |
19 |
M27×1.5 |
51 |
≤60 |
4 |
1Cr18Ni9Ti |
|
| |
